Aluminum Bar and Plate Air Cooled Heat Exchanger for railway Application

Ask Lasest Price
Brand Name :	ADV
Model Number :	ADV - BP-TC01
Certification :	ISO9001:2008
Supply Ability :	1~50 + Units + 25 Working Days
Delivery Time :	1~25 Working Days

Add to Cart

Product Details
Company Profile

Aluminum Bar and Plate Air Cooled Heat Exchanger for railway Application

Aluminum Bar and Plate Air Cooled Heat Exchanger

for Railway Application

Quick Guide

We offers excellent thermal management solutions to the railway industry application, designing and manufacturing either Testing for your Rail Cooling projects.

Advantages

Fin design and manufacturing
High efficiency washing process.
Vacuum brazing process.
EN15085 welding standard
C5 Antiseptic Treatment ＞1440h without red & white point

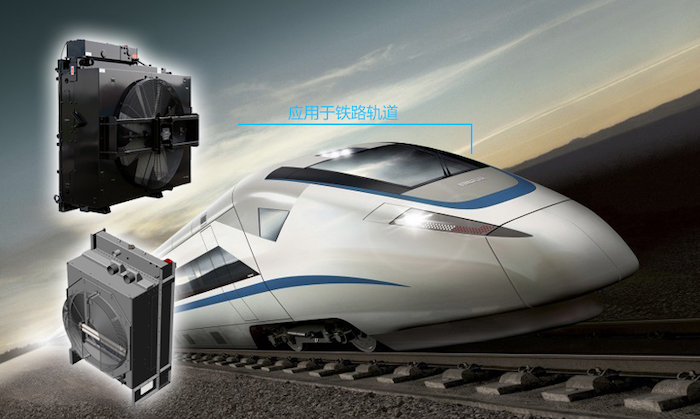

Railway Thermal Management Solution

LAB & Test

1.Leak Test of Every Unit

2.Performance Test

Performance Test:	Compressed Air System	Water Glycol System	Water Glycol System
Flow:	0-48Nm3/min	400L/min	600L/min
Temp:	≤200°C	≤100°C	≤110°C
Max. heating power:	110KW	180KW	240KW

3. Pulse Test

4. Viberation Test

5. Salty Spay Test

we can offer C5 standard preservative treatment preservative treatment, please contact us fr more information

Project Experience

3D model drawing available
Prototype testing and confirmation
Steel frame support, Front to Back type design and manufacturing
Easy mounting and maintain, Good anti-vibration
Stable Performance & Low Pressure Drop
Compact Design & Light Weight
Motor & Fan is Optional
12 Month Global Warranty
OEM Production is Offered

Customization

You just need to tell us your specific requirements and environmental parameters so that we can make professional quotations accordingly.

Please advise:

Oil parameter	Fluid
	Flow
	Inlet temperature (℃)
	Cooling power (kw)
	Max. allowable pressure drop
	Max. work pressure (MPa)
Air parameter	Flow
	Inlet temperature (℃)
	Cooling power (kw)
	Max. allowable pressure drop
	Max. work pressure (MPa)
Cool air parameter	Flow & Pressure curve
	Inlet temperature (℃)
	Air trace
Mounting	Max overall dimension
	Location of connections
	Requirement of structure
Working condition

Be free to contact us if you need any further information, thank you!
