Compressor air cooled heat exchanger for compressor cooling solution

Ask Lasest Price
Brand Name :	ADV
Model Number :	ADV - BP-COMP01
Certification :	ISO9001
Price :	$1~$400
Payment Terms :	T/T
Supply Ability :	1~50 + Units + 25 Working Days
Delivery Time :	1~25 Working Days

Add to Cart

Product Details
Company Profile

Compressor air cooled heat exchanger for compressor cooling solution

Aluminum bar plate oil air cooled heat exchanger for compressor cooling solution

Description

The CMP Compressor air cooled heat exchanger series is a complete aftercooler package designed to work on most models of rotary and piston air compressors. To Selected the appropriate model, simply determine compressor horsepower, please select the model from the chart
(All dimensions and technical characteristics can be designed according to your requirement, please contact us if you need customization)

1. Standard Compressor air cooled heat exchanger series (compressor oil cooler air cooler)

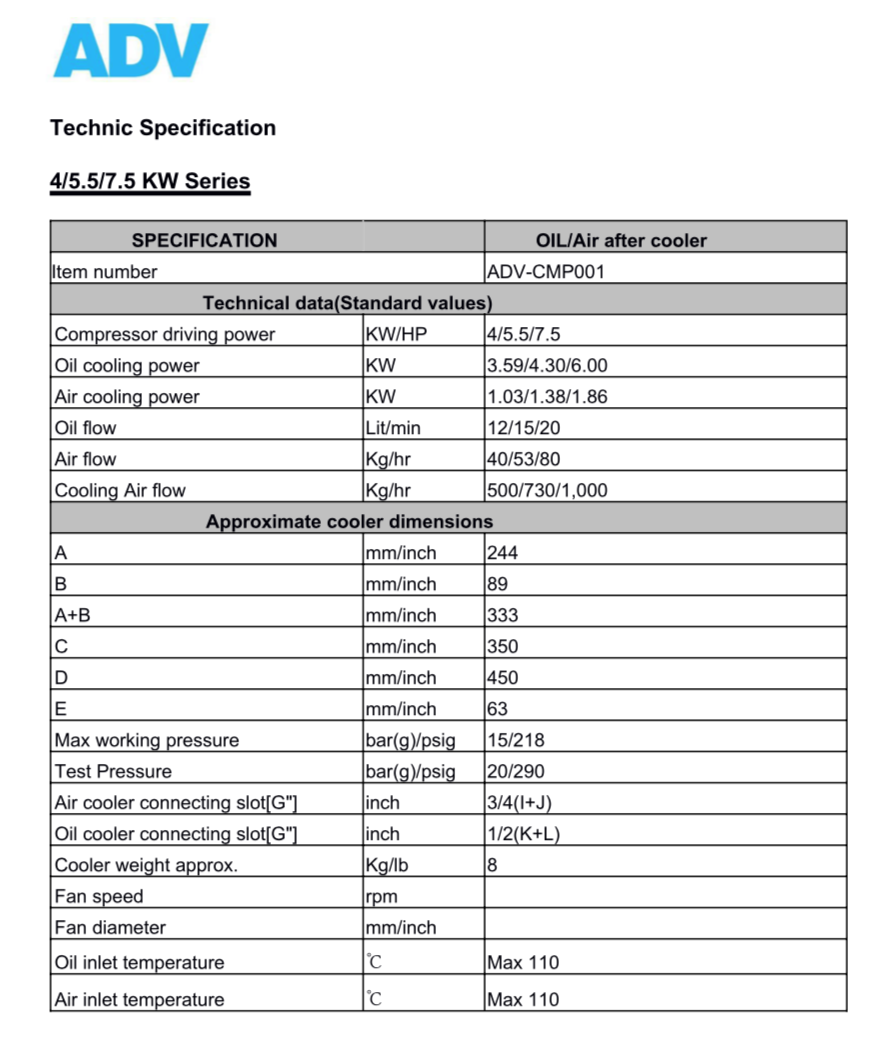

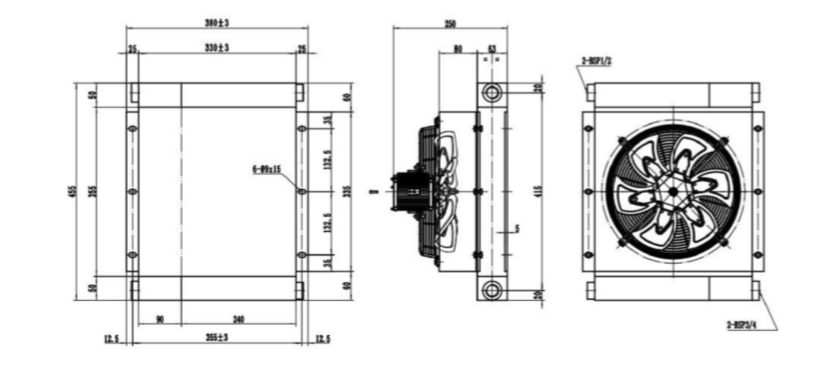

4/5.5/7.5 KW Series
11~15 KW Series
18~22 KW Series
30~37 KW Series
45-55 KW Series
75 KW Series
90-110 KW Series
90-110 KW Series (Design 2: ADV-CMP007-02)
132-180 KW Series
160 - 220 KW Series
200 - 271 KW Series

Material Description Working Situation for Compressor Heat Exchangers

Main Cooler Body	Aluminum AL3003
Housing	Powder painted steel
Fan Guard	Zinc Plated Steel
Fan Blade	Polypropylene

Maximum Working Pressure	15 bar(g)
Maximum Working Temperature	120℃

2. Customize Your Creative Compressor Cooling Solution With Us

Find the idea aluminum bar plate oil air cooled heat exchangers, you just need to tell us your specific requirements and environmental parameters so that we can make professional calculation and designing accordingly.

Oil Parameter	Fluid
	Flow
	Inlet temperature(℃)
	Cooling power(kw)
	Max. Allowable Pressure Drop
	(MPa) Max. work pressure
Air Parameter	Flow
	Inlet temperature(℃)
	Cooling power(kw)
	Max. allowable pressure drop
	(MPa) Max. work pressure
Cool Air Parameter	Flow & pressure curve
	Inlet temperature(℃)
	Air Trace
Mounting	Max Overall Dimension
	Location of Connections
	Requirement of Structure
Working Condition for the Compressor Heat Exchangers

ADV, Professional Heat Exchanger Designer and Manufacturer, Be free to contact us if you need any supporting, thank you!
