Global brand compressor air cooler after cooler oil heat exchanger

Ask Lasest Price
Brand Name :	ADV
Model Number :	ADV -OC-01
Certification :	ISO9001
Supply Ability :	1~50 + Units + 25 Working Days
Delivery Time :	7~15 Working Days

Add to Cart

Product Details
Company Profile

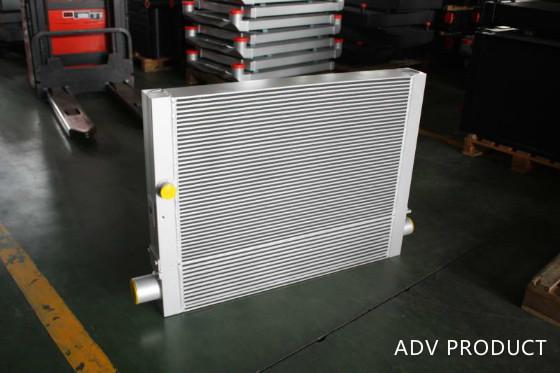

Global brand compressor air cooler after cooler oil heat exchanger

Quick Description

Aluminum Plate Fin Air Cooler Inter Cooler Air Charge Cooler large air cooler

ADV is professional cooling solution supplier for compressor oil cooler, air cooler & after coolers, we can custom compressor for OEM manufacurers, also we have CMP Series which is a complete aftercooler package designed to work on most models of rotary and piston air compressors.

To Selected the appropriate model, simply determine compressor horsepower, and select the model from the chart

(All dimensions and technical characteristics can be designed according to your requirement, please contact us if you need customization)

Material Description & Working Situation

Main Cooler Body	Aluminum
Housing	Powder painted steel
Fan Guard	Galvanized plate
Fan Blade	Polypropylene
Maximum Working Pressure	250 PSI
Maximum Working Temperature	110℃

Technic Specification : (took from 220 KW)

SPECIFICATION		OIL/Air after cooler
Item number		ADV-CMP009
Technical data(Standard values)
Compressor driving power	KW/HP	160/220
Oil cooling power	KW	122
Air cooling power	KW	37
Oil flow	Lit/min	120
Air flow	Kg/hr	2100
Cooling Air flow	Kg/hr	18,000
Approximate cooler dimensions
A	mm/inch	840
B	mm/inch	382
A+B	mm/inch	1222
C	mm/inch	1120
D	mm/inch	1270
E	mm/inch	95
Max working pressure	bar(g)/psig	15/218
Test Pressure	bar(g)/psig	20/290
Air cooler connecting slot[G"]	inch	2(M+P)
Oil cooler connecting slot[G"]	inch	1-1/2(N+O)
Cooler weight approx.	Kg/lb	108.5
Fan speed	rpm
Fan diameter	mm/inch
Oil inlet temperature	℃	Max 120
Air inlet temperature	℃	Max 120

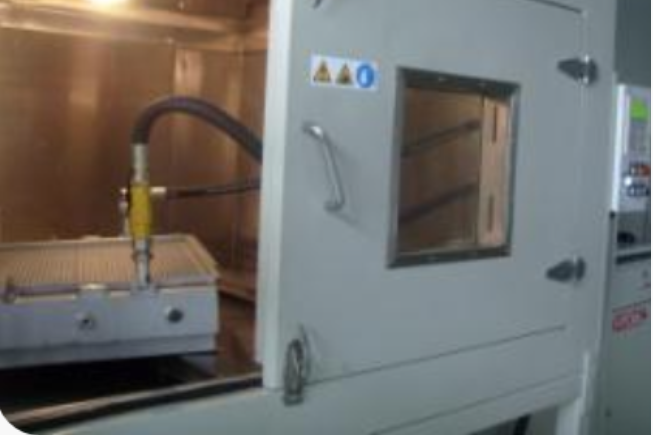

LAB & Test

1.Leak Test of Every Unit

2.Performance Test ( Available)

Performance Test:	Compressed Air System	Water Glycol System	Water Glycol System
Flow:	0-48Nm3/min	400L/min	600L/min
Temp:	≤200°C	≤100°C	≤110°C
Max. heating power:	110KW	180KW	240KW

Aluminum Bar and Plate Heat Exchanger oil cooler air cooler water radiator for railway vehicles cooling system

3. Pulse Test ( Available)

Aluminum Bar and Plate Heat Exchanger oil cooler air cooler water radiator for railway vehicles cooling system

4. Viberation Test (Available)

Aluminum Bar and Plate Heat Exchanger oil cooler air cooler water radiator for railway vehicles cooling system

5. Salty Spay Test

we can offer C5 standard preservative treatment preservative treatment, please contact us fr more information

Aluminum Bar and Plate Heat Exchanger oil cooler air cooler water radiator for railway vehicles cooling system

ADV Project Experience

3D model drawing available
Prototype testing and confirmation
Steel frame support, Front to Back type design and manufacturing
Easy mounting and maintain, Good anti-vibration
Stable Performance & Low Pressure Drop
Compact Design & Light Weight
Motor & Fan is Optional
12 Month Global Warranty

Customization Service for your compressor cooling solutions

Purchasing Guide

You just need to tell us your specific requirements and environmental parameters for your compressor, so that we can make professional quotations accordingly.

Please advise:

Oil parameter	Fluid
	Flow
	Inlet temperature (℃)
	Cooling power (kw)
	Max. allowable pressure drop
	Max. work pressure (MPa)
Air parameter	Flow
	Inlet temperature (℃)
	Cooling power (kw)
	Max. allowable pressure drop
	Max. work pressure (MPa)
Cool air parameter	Flow & Pressure curve
	Inlet temperature (℃)
	Air trace
Mounting	Max overall dimension
	Location of connections
	Requirement of structure
Working condition

Be free to contact us if you need any further information, thank you!
