Screw Compressor 4.5~271kw cooler supplier Aluminum
After Cooler Package With Fan and Motor
Description
The CMP Series is a complete cooling package designed to work on
most models of rotary piston, and screw compressors.
To Selected the appropriate model, simply determine compressor
horsepower, and select the model from the chart
(All dimensions and technical characteristics can be designed
according to your requirement, please contact us if you need
customization)
Material Description & Working Situation
Main Cooler Body | Aluminum |
Housing | Powder painted steel |
Fan Guard | Galvanized plate |
Fan Blade | Polypropylene |
Maximum Working Pressure | 250 PSI |
Maximum Working Temperature | 110℃ |
Technic Specification : (took from 220 KW)
| SPECIFICATION | OIL/Air after cooler |
| Item number | | ADV-CMP009 |
| Technical data(Standard values) |
| Compressor driving power | KW/HP | 160/220 |
| Oil cooling power | KW | 122 |
| Air cooling power | KW | 37 |
| Oil flow | Lit/min | 120 |
| Air flow | Kg/hr | 2100 |
| Cooling Air flow | Kg/hr | 18,000 |
| Approximate cooler dimensions |
| A | mm/inch | 840 |
| B | mm/inch | 382 |
| A+B | mm/inch | 1222 |
| C | mm/inch | 1120 |
| D | mm/inch | 1270 |
| E | mm/inch | 95 |
| Max working pressure | bar(g)/psig | 15/218 |
| Test Pressure | bar(g)/psig | 20/290 |
| Air cooler connecting slot[G"] | inch | 2(M+P) |
| Oil cooler connecting slot[G"] | inch | 1-1/2(N+O) |
| Cooler weight approx. | Kg/lb | 108.5 |
| Fan speed | rpm | |
| Fan diameter | mm/inch | |
| Oil inlet temperature | ℃ | Max 120 |
| Air inlet temperature | ℃ | Max 120 |
LAB & Test
1.Leak Test of Every Unit
2.Performance Test ( Available)
| Performance Test: | Compressed Air System | Water Glycol System | Water Glycol System |
|---|
| Flow: | 0-48Nm3/min | 400L/min | 600L/min |
|---|
| Temp: | ≤200°C | ≤100°C | ≤110°C |
|---|
| Max. heating power: | 110KW | 180KW | 240KW |
|---|
3. Pulse Test ( Available)
4. Viberation Test (Available)

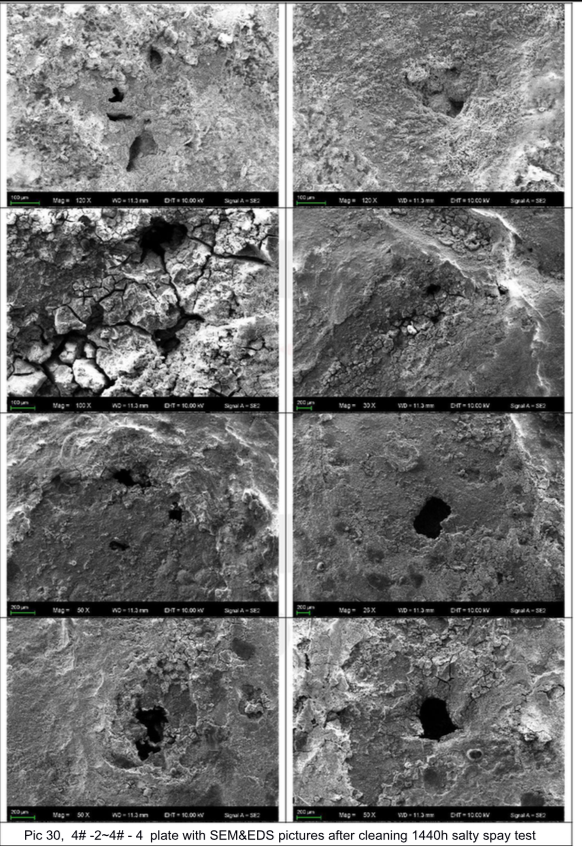

5. Salty Spay Test (Especially for Marine Compressor Usage )
we can offer C5 standard preservative treatment preservative
treatment, please contact us fr more information
ADV Project Experience
- 3D model drawing available
- Prototype testing and confirmation
- Steel frame support, Front to Back type design and manufacturing
- Easy mounting and maintain, Good anti-vibration
- Stable Performance & Low Pressure Drop
- Compact Design & Light Weight
- Motor & Fan is Optional
- 12 Month Global Warranty
Customization Service
Purchasing Guide
You just need to tell us your specific requirements and
environmental parameters for your compressor, so that we can make
professional quotations accordingly.
Please advise:
| Oil parameter | Fluid | |
| Flow | |
| Inlet temperature (℃) | |
| Cooling power (kw) | |
| Max. allowable pressure drop | |
| Max. work pressure (MPa) | |
| Air parameter | Flow | |
| Inlet temperature (℃) | |
| Cooling power (kw) | |
| Max. allowable pressure drop | |
| Max. work pressure (MPa) | |
| Cool air parameter | Flow & Pressure curve | |
| Inlet temperature (℃) | |
| Air trace | |
| Mounting | Max overall dimension | |
| Location of connections | |
| Requirement of structure | |
| Working condition | |
Be free to contact us if you need any further information, thank
you!
