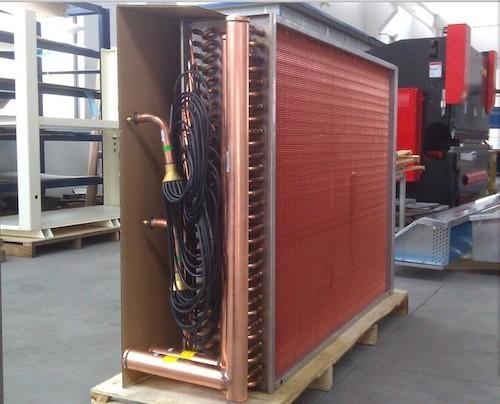

Copper Tube Condenser Coil ​For

Industrial Refrigeration Commercial Refrigeration Air Conditioning Heat Pump​

Manufactured in copper or aluminum tubes. Annealed, cold drawn copper or aluminum ASTM quality tubes, especially manufactured for the construction of coils of 1/4” ,5/16”, 3/8” , 1/2" , 5/8” , and 12 mm in diameter with a thickness of 0.3, 0.35, 0.4 , 0.5 0.76, (mm).
Multiple geometries available in our general catalogue of templates and fins, in order to optimize performance and the requirements of each customer.

• Aluminum, lacquered aluminum, copper or corrugated stainless steel fins with self-spacing collar covering the surface of the tube, maximizing the heat exchange and fully exploiting the air flow, and their different treatments according to customer requirements.
• Efficiently designed chassis with a strong yet light structure to give high rigidity and mobility to our heat exchanger. Offering the possibility to choose different materials such as aluminum, galvanized or stainless steel.
• The entire structure is compact, therefore avoiding vibrations. All pieces are easily detachable for maintenance.

Advantages

• Design software: Using the mature European design software, according to the actual demand accurate design of heat exchanger, can design the latest refrigerant CO2,R410A, R507A and special low temperature cold agent etc.
• Heat exchange structure: Supported to the casing by means of a "flating-bed " system that avoids any kind of contact between the heat-exchange tubes and the supporting end plates,assuring a long life for the heat-exchange without leaks. Heat-exchange sections separated and independent for each fan. The standard fin spacing is 2.1mm,Fin pitch up to 12mm for low air pressure drop.
• Condenser structure: Shape with flexible and changeable,--Flat-bed,W-Bank,V-Bank; Fan direction--blowing and sucking. Finned length up to 12m,Finned height up to 2.7m.
• Heat Exchange Tube: Using copper content more than 99.9% of special effective teeth threaded pipe, increase the surface area of the tube, improve the thermal efficiency.
• Casing: Using galvanized sheet case, spraying outdoor powder coatings, and after high temperature curing, high strength of corrosion resistance is strong, the standard color for RAL9003.
• Fans: Low noise axial fans,with maintenance free motors in protection class IP 54,Internal motor protection with thermo contacts.With precise design, a leading solar or lunar halo forming mould processing, air volume is larger and more efficient.

OEM Options

Work Shop Gallary

Please be free to contact us if you need any further information, thank you!

ADV Heat Exchanger Co.,Ltd, located in Changzhou, Jiangsu Province, China, is a professional customized manufacturer for various cooling solutions for Machinery, Electronic, Hydraulic & Lubricant System, Compressed Air & Gas, New Generation, Automotive and Various Industry Applications …

We design, test and manufacture wide ranges of brazed aluminum coolers, copper and brass tube coolers, plate coolers, stainless steel coolers for Oil, Air (compressed and charged air) and Water/Glycol mixtures, according to the special application requirements.

Advantage, Development ,Value is our mission and which we can always offer to our customers.
