Flat Bed Dry Cooler with 2.11 Fin Space

Ask Lasest Price
Brand Name :	ADV
Model Number :	ADV -UC-01
Certification :	ISO9001:2008
Price :	FOB SHANGHAI
Supply Ability :	1~50 + Units + 25 Working Days
Delivery Time :	7~15 Working Days

Add to Cart

Product Details
Company Profile

Flat Bed Dry Cooler with 2.11 Fin Space

Copper Dry Cooler Oil Water copper Cooler industrial copper tube cooler

We manufacture heat exchangers to fit many unique processes, with fluid temperatures ranging from -20°F up to 300°F (-30°C to 150°C). We offer many options for air coolers including induced draft, forced draft, custom coil geometries and materials.

We also offer a variety of fan and motor options - standard fans are direct drive propeller type, but other options such as V-belt drive, centrifugal blowers and non-sparking blades are also available. If you have non-standard fan needs, contact our sales department and we can find the right solution for you. In general, our motors are high efficiency, ODP, Nema type. We can provide explosion proof, ultra high efficiency, severe duty motors and more where required. We build with global needs in mind, as a result voltages are available for service anywhere in the world.

While copper is the most widely used tubing and aluminum the most widely used fin material, Dry Coolers can supply many alternative materials and joining methods for challenging applications

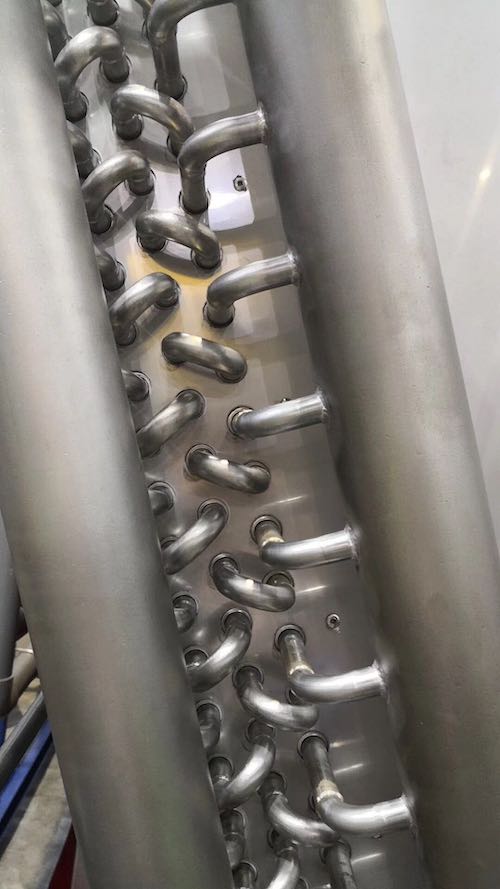

Quality Details

Flat Bed Dry Cooler with 2.11 Fin Space

Selection Data

630/800 Flat-bed Dry Cooler selection data(2.11mm Fin Spacing)
Model	Capacity	Flowrate	pressure Drop	Exchange surface/	Tube volume/	Air flow	Sound Pressure Level	Fan Data		No. of fans	Connection	Weight
Model	kW*1	m3/h	kPa	㎡	L	m3/h	dB(A)10m	3~400/50		mm	mm	kg
	Glycol 34%			㎡	L	m3/h	dB(A)10m	W	A	N*D	IN/OUT DN	kg
HDFS135-0006	6	1.1	36	19	2.4	2204	31	140	0.6	1*350	DN20	38
HDFS135-0007	7	1.3	44	25	3.2	2066	31	140	0.6	1*350	DN20	42
HDFS135-0008	8	1.4	74	37	4.9	1823	31	140	0.6	1*350	DN20	48
HDFS145-0014	14	2.6	123	27	3.6	5733	43	540	1.1	1*450	DN25	55
HDFS145-0016	16	0.0	95	37	4.8	5315	43	540	1.1	1*450	DN25	60
HDFS145-0018	18	3.3	133	55	7.2	4681	43	540	1.1	1*450	DN25	69
HDFS150-0020	20	3.8	59	46	6.0	8236	49	830	1.45	1*500	DN32	84
HDFS150-0023	23	4.4	44	61	8.0	7873	49	830	1.45	1*500	DN32	93
HDFS150-0026	26	4.8	66	76	10.0	7510	49	830	1.45	1*500	DN32	109
HDFS163-0039	39	7.3	64	74	9.7	17375	59	1600	3.2	1*630	DN40	255
HDFS163-0047	47	8.8	120	99	13.0	16556	59	1600	3.2	1*630	DN40	268
HDFS163-0055	55	10.3	147	148	19.5	15037	59	1600	3.2	1*630	DN40	294
HDFS263-0081	81	15.2	147	148	19.5	34729	61	3200	6.4	2*630	DN50	397
HDFS263-0094	94	17.6	114	198	26.0	33113	61	3200	6.4	2*630	DN50	422
HDFS263-0109	109	20.5	132	297	39.0	30074	61	3200	6.4	2*630	DN50	471
HDFS363-0142	142	26.7	154	296	38.8	49653	63	4800	9.6	3*630	DN65	575
HDFS363-0163	163	30.5	93	445	58.5	45111	63	4800	9.6	3*630	DN65	647
HDFD463-0215	215	40.2	71	593	78.0	60191	64	6400	12.8	4*630	DN65	708
HDFD463-0188	188	35.2	111	395	52.0	66225	64	6400	12.8	4*630	DN80	806
HDFD663-0285	284	53.3	155	593	77.5	99306	66	9600	19.2	6*630	DN80	978
HDFD663-0325	325	60.9	96	889.67	117.0	90222	66	9600	19.2	6*630	DN80	1122
HDFD863-0375	375	70.3	109	791	104	132451	67	12800	25.6	8*630	DN100	1275
HDFD863-0429	429	80.4	67	1186	156.0	120382	67	12800	25.6	8*630	DN100	1467
HDFD1063-0499	499	93.6	67	1229	203.9	161253	68	16000	32	10*630	DN100	1921
HDFD1063-0572	572	107.1	126	1843	305.8	145197	68	16000	32	10*630	DN125	2324
HDFD1263-0675	675	126.4	65	2212	367.0	174366	68	19200	38.4	12*630	DN125	2714
HDFD1463-0805	805	150.8	158	2958	545.5	196035	69	22400	44.8	14*630	2XDN125	2627
HDFD1663-0904	904	169.3	71	3380	623.4	224212	69	25600	51.2	16*630	2XDN125	2951

HDFS180-0057	57	10.6	61	137	18.0	19395	50	1800	3.8	1*800	DN50	313
HDFS180-0061	61	11.4	47	171	22.5	18235	50	1800	3.8	1*800	DN50	330
HDFS180-0065	65	12.1	84	205	27	17159	50	1800	3.8	1*800	DN50	348
HDFS280-0117	117	21.8	130	274	35.8	38747	51	3600	7.6	2*800	DN65	513
HDFS280-0125	125	23.4	100	342	45.0	36427	51	3600	7.6	2*800	DN65	546
HDFS280-0129	129	24.1	76	411	54.0	34318	51	3600	7.6	2*800	DN65	580
HDFS380-0170	170	31.8	54	411	54.0	58184	53	5400	11.4	3*800	DN80	711
HDFS380-0189	189	35.4	136	513	67.5	54641	53	5400	11.4	3*800	DN80	762
HDFS380-0195	195	36.5	104	616	81.0	51445	53	5400	11.4	3*800	DN80	811
HDFD480-0219	219	41	142	490	64.5	73951	54	7200	15.4	4*800	DN100	867
HDFD480-0233	233	43.7	117	613	80.2	68720	54	7200	15.4	4*800	DN100	934
HDFD480-0240	240	45	82	736	96.7	64585	54	7200	15.4	4*800	DN100	1001
HDFD680-0318	318	59.7	58	736	96.7	111053	56	10800	22.8	6*800	DN125	1216
HDFD680-0352	352	66	147	919	120.6	103079	56	10800	22.8	6*800	DN125	1315
HDFD680-0363	363	68.1	112	1104	145.1	96878	56	10800	22.8	6*800	DN125	1415
HDFD880-0473	437	81.9	135	981	129	147902	58	14400	30.4	8*800	DN125	1603
HDFD880-0486	486	91	104	1506	249.2	131027	58	14400	30.4	8*800	2XDN100	2196
HDFD880-0493	493	92.3	77	1808	300	122589	58	14400	30.4	8*800	2XDN100	2419
HDFD1080-0556	556	104	257	1226	161	184877	60	18000	38	10*800	2XDN100	1984
HDFD1080-0599	599	112.2	64	1883	312	163889	60	18000	38	10*800	2XDN125	2723
HDFD1080-0624	624	117	145	2259	375	153131	60	18000	38	10*800	2XDN125	3000
HDFD1280-0817	817	153	151	3570	658.4	191224	62	21600	45.6	12*800	2XDN125	2911
＊1,Capacity based on ambient temp of 25℃,Liquid In Temp of 40℃,Liquid Out Temp of 35℃.
＊2,The sound pressure level data are average tested at the intersection of fan plane and reflection plane and reflection plane 10 meters from axis.the value may according to site sound reflection.

OEM Customation

Frame	Fin	Heat-exchange Tube	Fan	Electric Control	Other
Hot dip galvanized steel	Hydrophilic Fin	Stainless steel 304	EC Fan	Junction Box	HT/LT Double-Bank Heat-exchange
Stainless steel 304	Almg 25	Stainless steel 316	Explosion-proof fan motors	safety Switch	Adiabatic Water spraying system
Stainless steel 316	Copper Fin	B10	Marine Fan Motor	Control Box	Steel Structure and safe access for service
Aluminum	Pre-coated Epoxy Fin	B30	Stainless Steel Guards	VFD Control Box	Air filter
	Copper Tinned Fin	Titanium		Temperature/Pressure Control Box
	Heresite/ Blygold/Epxoy Coated Fin

Advantages

Design software	Using the mature European design software, according to the EN1048 and actual demand accurate design of heat exchanger, can design the special low temperature cold agent etc.
Heat exchange structure	Supported to the casing by means of a "flating-bed " system that avoids any kind of contact between the heat-exchange tubes and the supporting end plates,assuring a long life for the heat-exchange without leaks. Heat-exchange sections separated and independent for each fan. The standard fin spacing is 2.1mm,Fin pitch up to 12mm for low air pressure drop.
Condenser structure	Shape with flexible and changeable,--Flat-bed,W-Bank,V-Bank; Fan direction--blowing and sucking. Finned length up to 12m,Finned height up to 2.7m.
Heat Exchange Tube	Using copper content more than 99.9% pipe,using three type copper tube 3/8",1/2",5/8" Increased the thermal efficiency and low fluid pressure drop .
Casing	Using galvanized sheet case, spraying outdoor powder coatings, and after high temperature curing, high strength of corrosion resistance is strong, the standard color for RAL9003.
Fans	Low noise axial fans,with maintenance free motors in protection class IP 54,Internal motor protection with thermo contacts.With precise design, forming mould processing, air volume is larger and more efficient.

Project Experience

3D model drawing available
Prototype testing and confirmation
Steel frame support, Front to Back type design and manufacturing
Easy mounting and maintain, Good anti-vibration
Stable Performance & Low Pressure Drop
Compact Design & Light Weight
Motor & Fan is Optional
12 Month Global Warranty
OEM Production is Offered

Purchasing Guide

You just need to tell us your specific requirements and environmental parameters so that we can make professional quotations accordingly.

Please advise:

Oil parameter	Fluid
	Flow
	Inlet temperature (℃)
	Cooling power (kw)
	Max. allowable pressure drop
	Max. work pressure (MPa)
Air parameter	Flow
	Inlet temperature (℃)
	Cooling power (kw)
	Max. allowable pressure drop
	Max. work pressure (MPa)
Cool air parameter	Flow & Pressure curve
	Inlet temperature (℃)
	Air trace
Mounting	Max overall dimension
	Location of connections
	Requirement of structure
Working condition

Be free to contact us if you need any further information, thank you!
